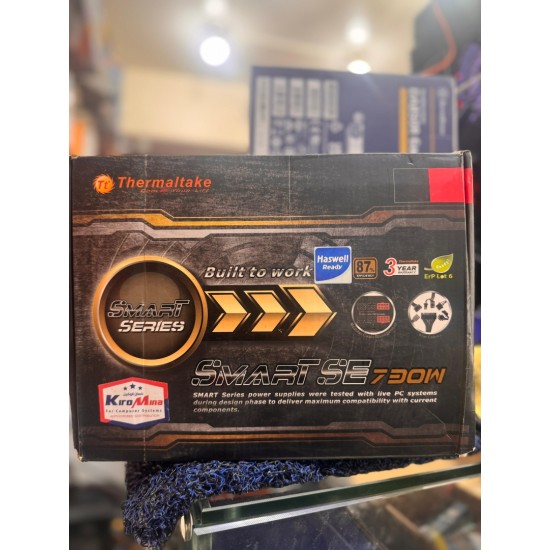

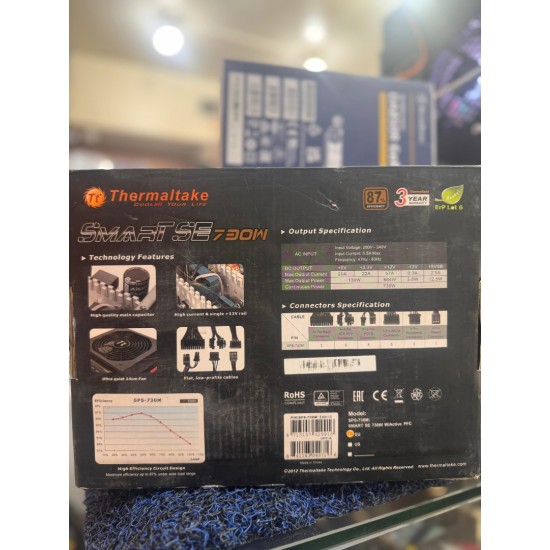

ThermalTake SMART SE 730W CM 87+ PSU MODULAR CABLE MANAGEMENT, SPS-730MPCBEU (MODULAR CABLE MANAGEMENT)

USED

Thermaltake Smart SE Power Supply

The latest presentation from Thermaltake in the essence of mainstream systems  the SMART SE Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 530 to 730W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.

87% Efficiency

Deliver up to 87% efficiency at 20-100% load under real world load conditions to cut down electric cost and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.

Flat & Low Profile Cable

All low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing. cable routing.

Modular cable

Customizing concept of Smart SE 530/630/730W enables user to maximize available power and make set-up easy. It is a semi-modular power supply that offered cable selection for users while powering system at a healthy voltage.

Top Quality made Capacitor

High quality main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

Smart Fan Control

Large 140mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.

Technical Specifications:

Type: Intel ATX 12V 2.3 & SSI EPS 12V 2.92

Max. Output Capacity: 630W-730W

Color: Black

Dimensions: 150mm(W) x 86mm(H) x 160mm(L)

PFC (Power Factor Correction): Active PFC

Power Good Signal: 100-500 msec.

Hold Up Time: >16msec

Input Current: 4.5A max.

Input Frequency Range: 47Hz - 63Hz

Input Voltage: 200VAC - 240VAC

Operating Temperature: 0 to +35

Storage Temperature: -20 to +70

Storage Humidity: 5% to 95%, non-condensing

Cooling System: 14cm Sleeve Fan: 1900RPM  10%

MTBF: 100,000 hrs minimum

Safety Approval: CE, TUV, GOST

PCI-E Connector: 6+2pin x 2
