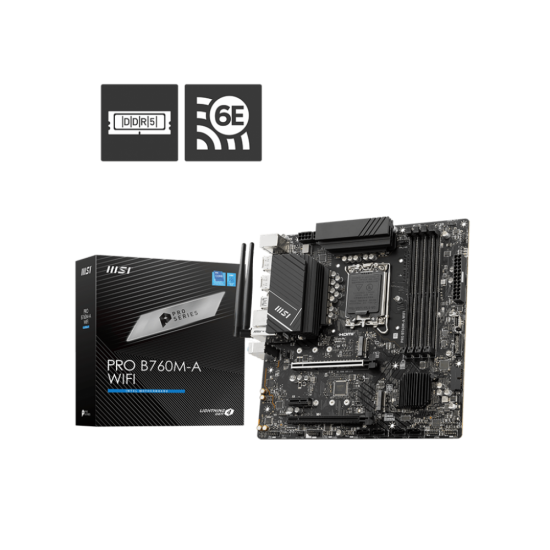

MSI PRO B760M-A WIFI

190 samples sold

Product Views: 138

Based on 0 reviews. - Write a review

EGP 7,950.00

Ex Tax: EGP 7,950.00

Qty

Add to Cart

الشـراء ألان أستعلم عن المنتج

Compare this Product

Quickview

EGP 6,799.00

Ex Tax:EGP 6,799.00

Add to Cart Compare this Product

Quickview

EGP 3,250.00

Ex Tax:EGP 3,250.00

Add to Cart Compare this Product

Quickview

EGP 3,199.00

Ex Tax:EGP 3,199.00

Add to Cart Compare this Product

Quickview

EGP 2,900.00

Ex Tax:EGP 2,900.00

Add to Cart Compare this Product

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	2x PCIe 4.0 x16 slots
PCI Express 3.0 x16	1x PCIe 3.0 x1 slot

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Onboard Audio
Audio Channels	8-Channel (7.1) HD Audio with Audio Boost

Onboard LAN
Max LAN Speed	Realtek® RTL8125BG 2.5G LAN
Wireless LAN	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth	Yes

MSI PRO B760M-A WIFI
